- Backup Power Pack with 82 Farad capacitors
- Overvoltage protector
- Reverse polarity protector
- Short circuit protector
- Servo back EMF protector
- Static electricity protector
- 200 event logger
- Two Telemetry ports. One for Mikado and one for Spektrum. Optional expansion modules for Futaba S-BUS, Jeti and FrSKY
- Fault tolerant design defaults to fully connected in case of malfunction
- One Remote Board port for controlling the system from the remote board (included in combo)
- Strobe Alarm Light port to connect the Strobe light (XStrobe – included in combo) or optional Sonic alarm (XBuzzer)
- Four power Ports:
- Input: Master & slave from ESC
- Output: Master & slave to receiver, or flybarless gyro system
- Slow current draw ramp-up to prevent overwhelming the ESC with inrush charging current.
- Protection against over-charging the supercapacitors above 8.1V for long term supercapacitor durability
- Pin-type Servo Connectors to avoid soldered wires that can fatigue and break
- Real-Time Operating System with mission Critical Coding will keep on attending and reacting to alarm events regardless of other functions working at the same time.
- ESC mode for small undervoltage sensing from ESC’s BEC
- BATT mode for receiver battery empty sensing when voltage drops to 5.5V
- Daisy chainable for large Aircraft allows to put several daisy chained XGuards to add capacity
- Place XGuard anywhere hidden in the aircraft and control it from the included XRemote board
- It has all the same indicator LEDs and Buttons plus additional features
- Hot pluggable
- Photo Camera-type strobe lights
- Built-in voltage booster to work even when caps are low in voltage
- Extremely low consumption via burst compression
- PC Board thickness so ceramic components don’t crack from vibration or torsion and screw placement
- Perfect visual warning that can be seen from great distances due to powerful flash diode LEDs
- Up to 200 events stay in permanent memory until another event happens in a different power up.
- Log Monitor LIVE vs LOG
- Hot pluggable

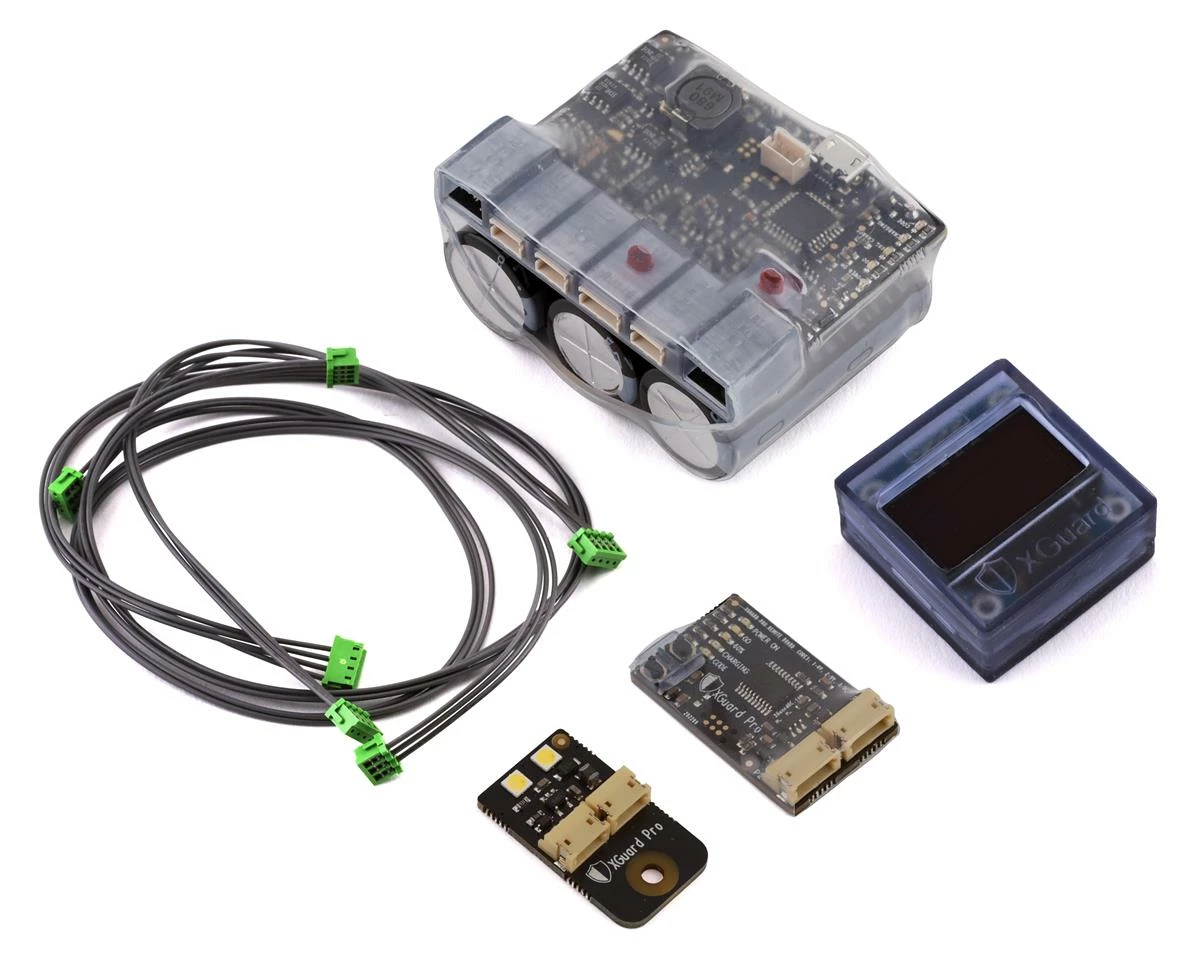

- (1) XGuard Pro C82 Backup Power System
- (1) XGuard Remote Board
- (1) XGuard Strobe Light
- (1) XLog Display Screen
Dimensions: 56x45x27mm
Replacement HD Extensions (3 and 4 pin) are available -> HERE
This product was added to our catalog on February 25, 2021
