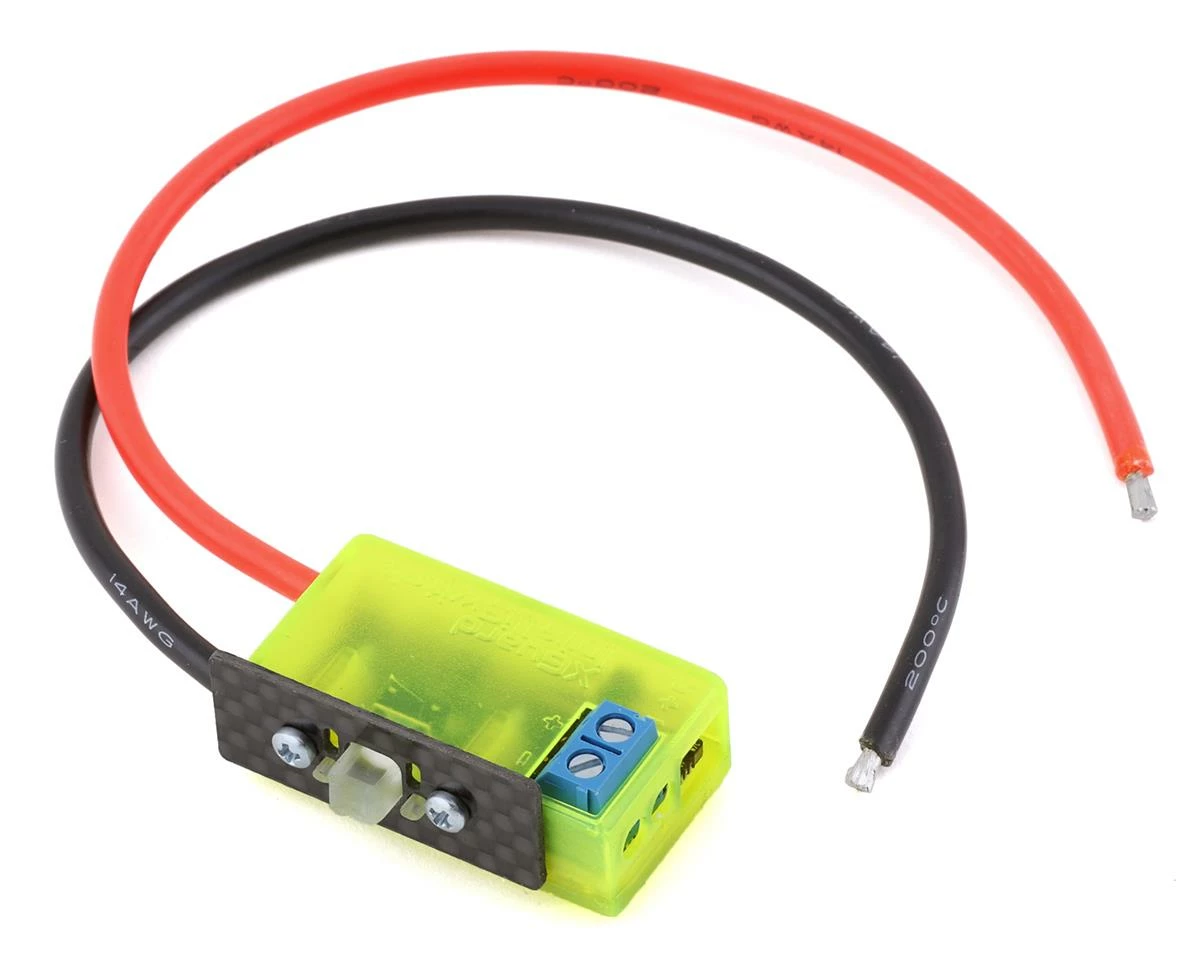

XGuard RC IntelliSwitch Intelligent Power Switch

The XGuard RC IntelliSwitch Intelligent Power Switch is a great way to add reliability and safety into your RC Heli. This power switch features dual solid state relays for added reliability when under peak load. The wires are held in tightly with screw-type terminals allowing for larger wires when used in a high current application. A 100dB buzzer acts as a low voltage alarm and aircraft locator. Package includes one IntelliSwitch.

Features:

• Dual solid state relays for added reliability
• Current Capacity limited by the wire used
• Switch handles up to 240A
• Double the servo outputs adds redundancy and doubles current capacity
• Works with LiPo, NiMh and LiFe batteries

Specifications:

• Battery Type:
• LiPo: 2S 7.4V
• NiMh: 6-Cell 7.2V
• LiFe: 2S 6.6V (When using a LiFe battery voltage warning will sound at 6.2V)
• Weight: 0.81oz (23.1g)
• Dimensions: 39.70×27.30×14.99mm
