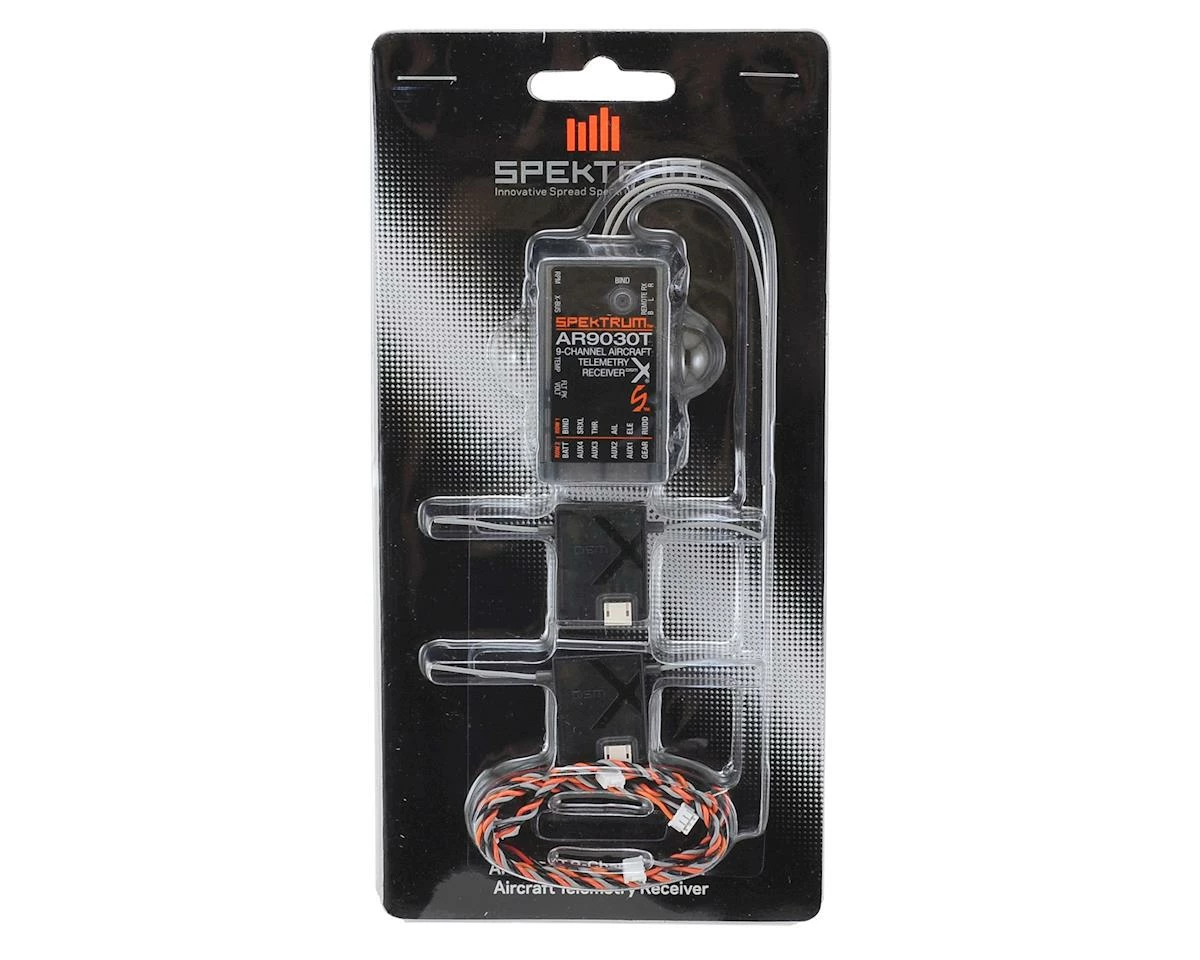

Spektrum RC AR9030T 9-Channel Air Integrated Telemetry Receiver

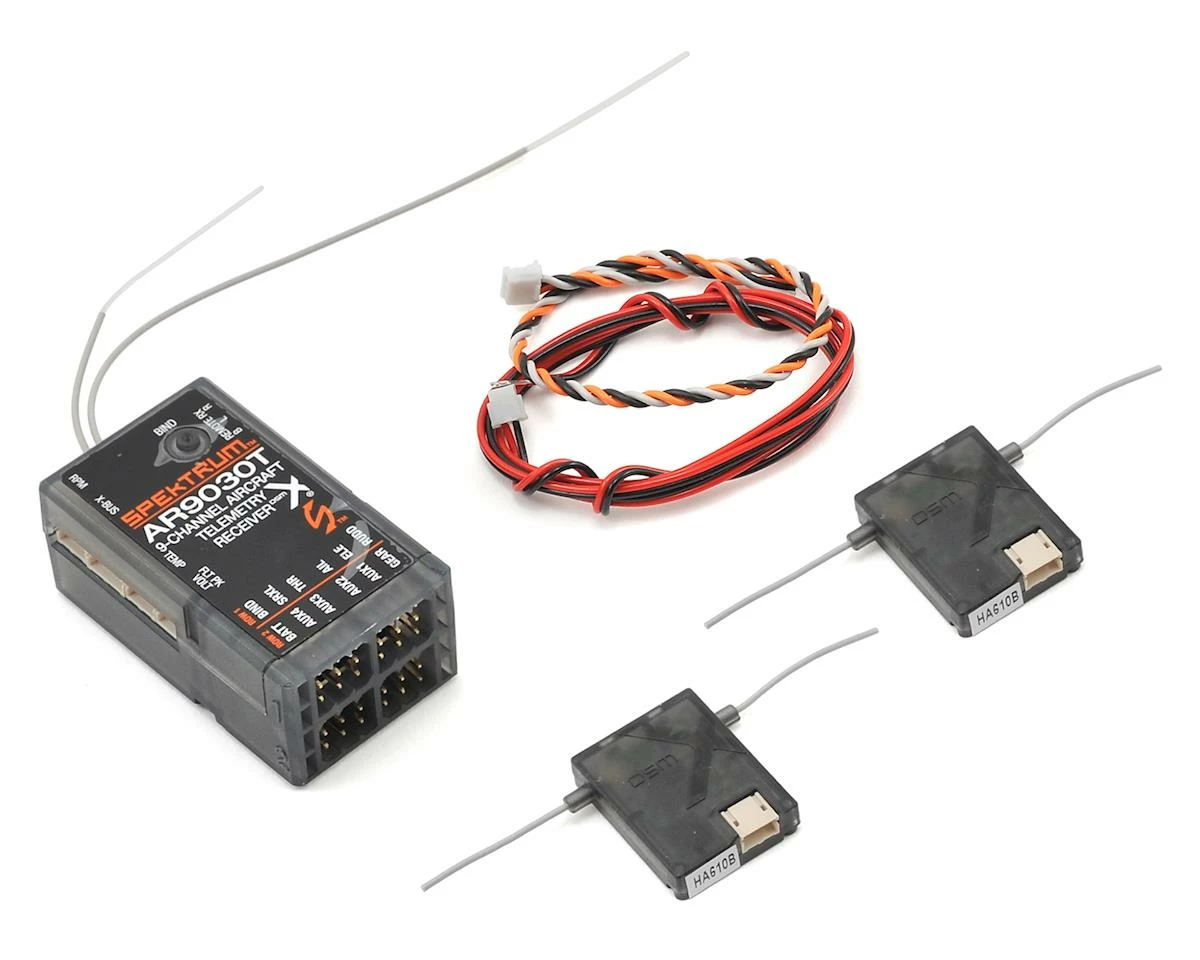

The AR9030T receiver is a feature-packed, 9-channel receiver with integrated full-range telemetry. The AR9030T features built-in connection ports for RPM, Flight Pack Voltage and Temperature sensors as well as an X-Bus port for additional telemetry options. No sensor is required to receive flight log or receiver pack voltage telemetry data. If you have a DSMX/DSM2® transmitter capable of 11ms frame rates the AR9030T receiver will deliver lightning-fast input-to-output response that is perfect for high-performance applications like 3D helis and airplanes. The AR9030T includes 2 DSMX remote receivers that allows you take advantage of Spektrum™ MultiLink™ technology. This patented technology eliminates the reflected signal fading and antenna blind spots that can affect all 2.4GHz systems.

Features:

• Compatible with all Spektrum DSMX transmitters
• Compact design fits most parkflyer size and larger aircraft
• Capable of 11ms frame rates
• Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors and X-bus for telemetry sensor expansion
• Receiver pack voltage and flight log data available without the need for additional sensors
• Dual antenna’s for optimal RF performance

Specifications:
Type: AR9030T 9 Channel Air Telemetry Receiver
# of Channels: 9
Modulation: DSM2/DSMX
Band: 2.4GHz
Length: 1.91 in (48.5 mm)
Width: 1.11 in (28.3 mm)
Height: 0.82 in (20.9 mm)
Weight: 0.63 oz (17.83 g)
Voltage Range: 3.5-9V
Experience Level: Intermediate
