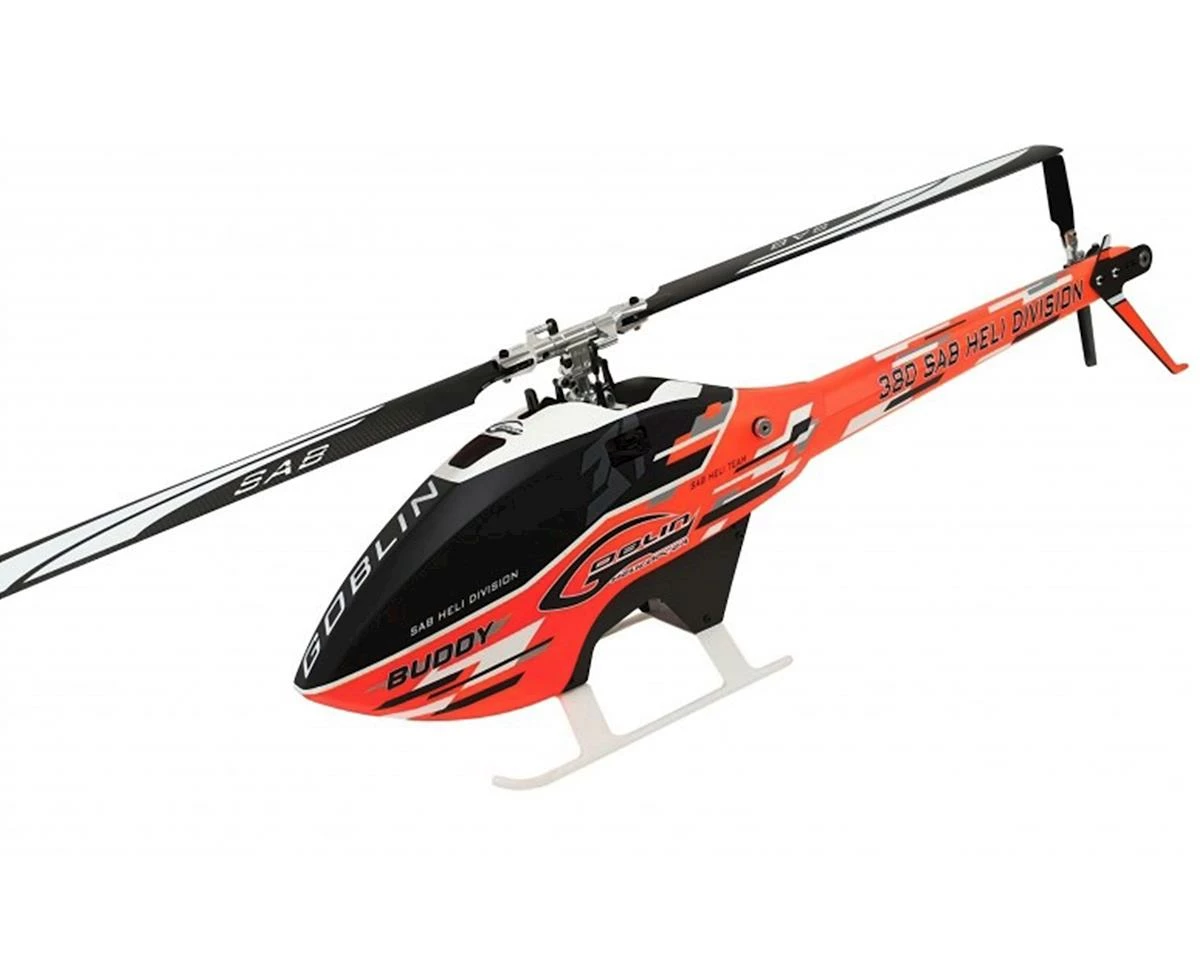

SAB Goblin 380 Buddy Flybarless Electric Helicopter Kit w/Blades

This is the SAB Goblin 380 Buddy Flybarless Electric Helicopter Kit. The Goblin 380 features the lowest  part count of any helicopter ever made by SAB Heli. The Goblin 380 delivers the performance, and reliability combined with the unique look and innovation of larger Goblin machines, with an unmatched level of simplicity!

Features:

• Redesigned Canopy Shape & Scheme
• Redesigned Landing Gear For Better Stability
• Redesigned 1.5mm Frame To Increase Rigidity & Durability
• Redesigned Battery & ESC Location To Improve CG

Specifications:
Main Rotor Diameter: 856mm
Main Blade Length: 380mm
Tail Rotor Diameter: 196mm
Tail Blade Length: 70mm
Main Shaft Diameter: 8mm
Tail Shaft Diameter: 5mm
Weight Including Electronics: 1075g (excluding batteries)

Electronic Requirements:

• Cyclic Servos: Micro size 23mm
• General and 3D Flight: MKS  DS92A+, Savox SH-0255MG
• General and Extreme Flight: BK 3001HV, SAVOX SV-1232MG, MKS HV93, MKS DS95
• Tail Servo: Mini size 35mm
• General and 3D Flight: Savox SH-1257MG, Futaba S9257
• General and Extreme Flight: BK 5005HV, MKS HV9780
• Typical Speed Controller:
• General and 3D Flight: Kontronik Koby 70, YGE 60 LV, CC Lite 75
• General and Extreme Flight: Kontronik Koby 90 – Jive 80LV , YGE 90 LV, CC Lite 100
• Maximum Motor Size: 41 mm diameter, 41 mm height
• General and 3D Flight: X-Nova 2820-890, Scorpion HK 3014-900, Quantum 2820-880
• General and Extreme Flight: Kontronik Pyro 380-9,X-Nova 3220-935, Scorpion HK 3020-1000, KDE 500XF-950
• Battery Compartment: 44x44x130mm
• Battery: 6S 1500/2600mAh
• For 3D flight: 6S-1800mAh
