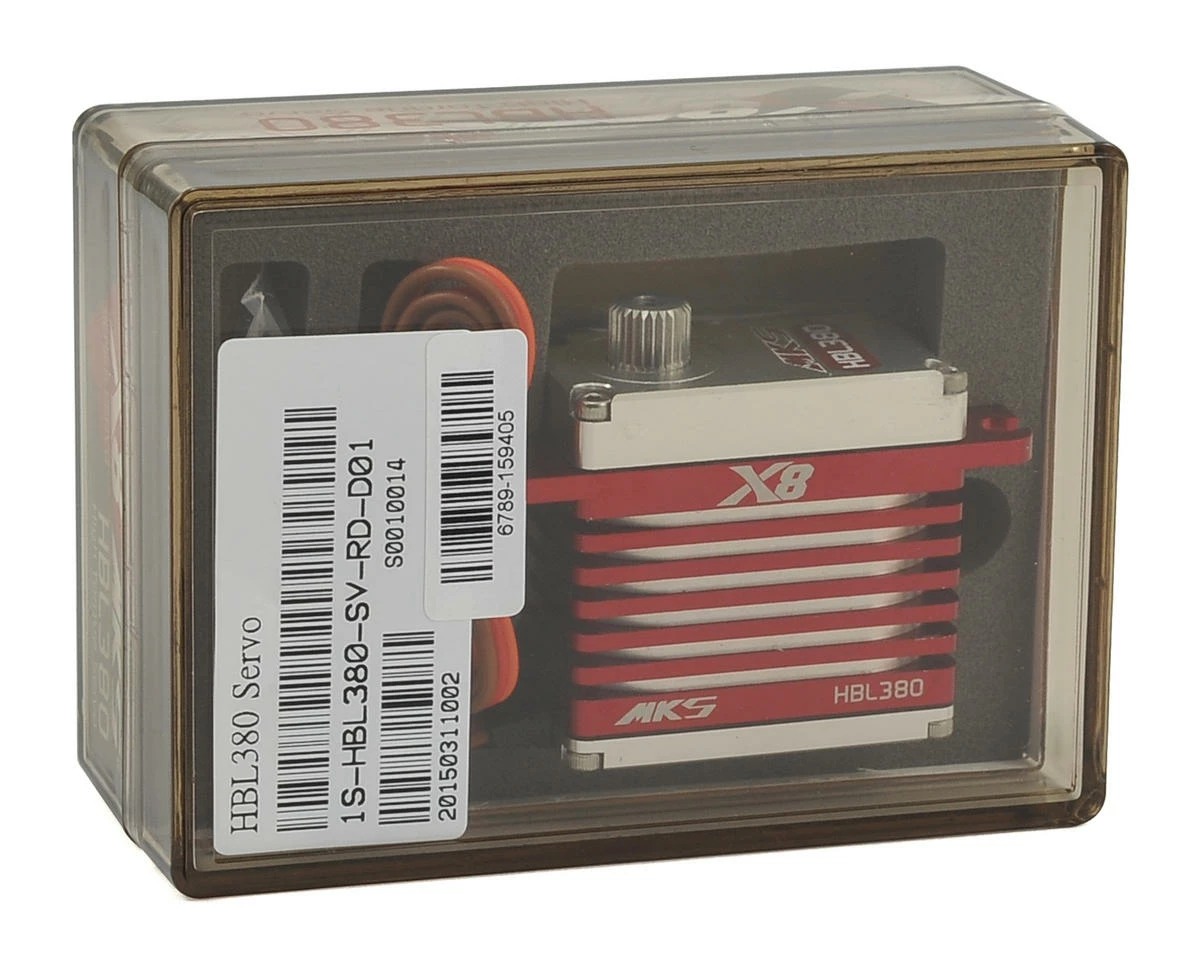

MKS Servos X8 HBL380 Brushless Ti-Gear High Torque Large Scale Servo (High Voltage)

The MKS X8 HBL380 Brushless Titanium Gear High Torque Large Scale Digital Servo is perfect for larger, heavier applications that require high speed and torque, low power consumption and superior holding torque, combined with the flexibility of high voltage circuitry in a standard size package.

Features:

• Ideal for 1/8 truck and 1/5 scale applications, as well as large scale airplanes and jets
• Perfect for cyclic on 700-800 class helicopters
• High speed, incredible efficiency, and low power consumption
• Chrome-Titanium gears for precision and durability
• .082 / 249.9 oz-in @6.0V and .06 / 333.3 oz-in @ 8.2V!
• Standard dimensions make it perfect for vehicles that can benefit from a high quality servo
• CNC Machined aluminum case for exceptional cooling
• HD 4096 Resolution
• 0.0008ms Dead Band
• Superior Holding Torque
• Japanese Brushless Motor

Specifications:

• Torque:
• @6.0V: 430 oz-in (31 kg-cm)
• @7.4V: 541.6 (39 kg-cm)
• @8.2V: 569.38 (41 kg-cm)
• Speed:
• @6.0V: 0.11 s
• @7.4V: 0.09 s
• @8.2V: 0.08 s
• Weight: 73 g
• Dimension: 40x20x38.5mm
• Working Voltage: 3.5 ~ 8.4 V (2S LiPo unregulated)
• Working frequency: 1520μs / 333Hz
• Dead Band: 0.0008 ms (Default)
• Bearing: 8x12mm double bearings
• Motor: Japan High Quality Brushless Motor
• Gear: Chrome-Titanium alloy gear
• Electric current draw: 6.2A max. (8.2V) / 5.8A max. (7.4V) / 4.7A max. (6.0V)
• Wire Length: 24 cm

This product was added to our catalog on August 5, 2015
