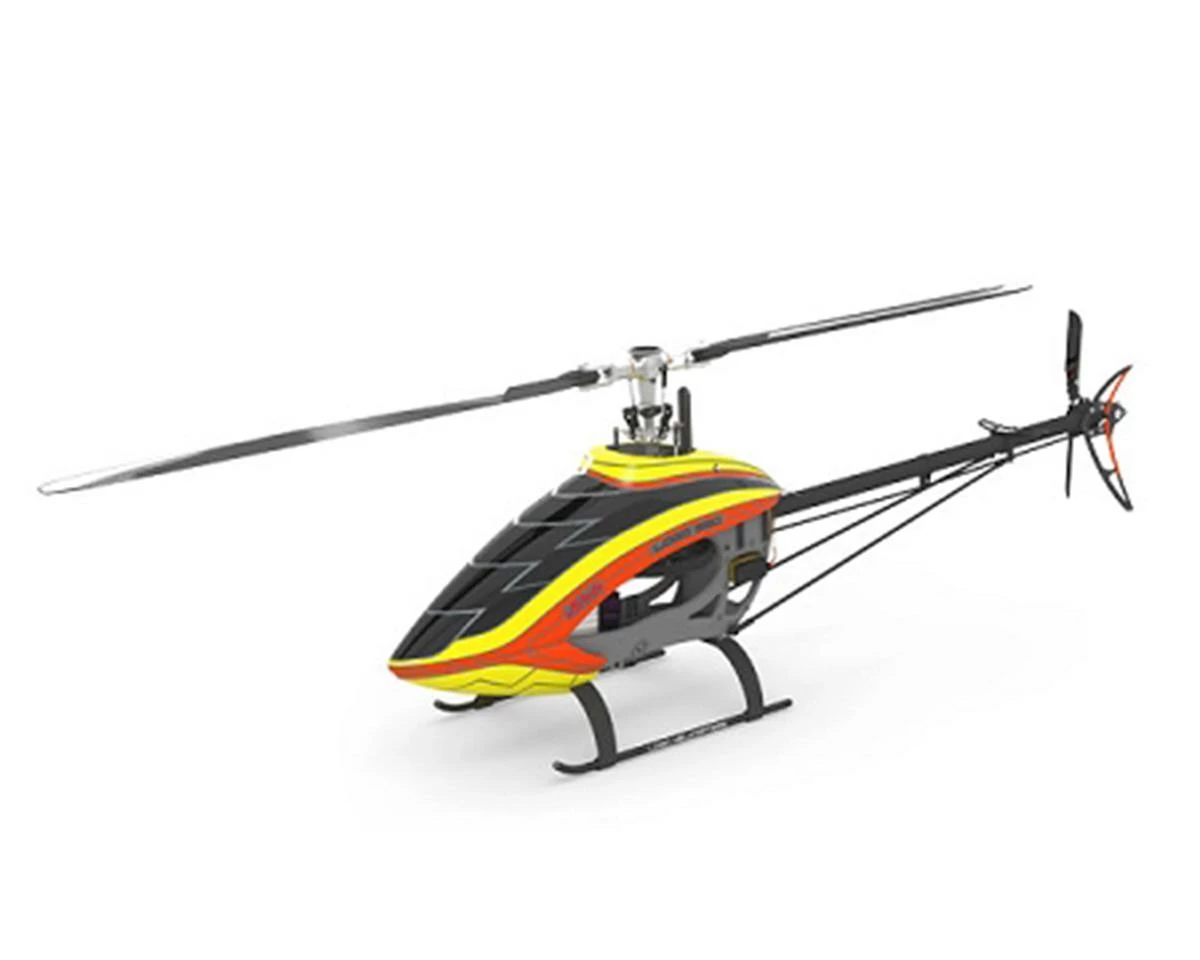

Mikado Logo 550 Electric Helicopter Kit

The Logo 550 Electric Helicopter combines years of Mikado heritage by utilizing the incredible Logo 550SX helicopter as a platform for improvement to meet the demands of the current helicopter market. The Logo 550 now features a full Aluminum Rotor Head, larger spindle shaft for improved crash durability, larger swashplate for incredible geometry through all collective and cyclic inputs, updated horizontal and vertical fin sets with color accents for improved visibility, and a signature style canopy similar to that of the Logo 700 helicopter.

Specifications:
Rotor Diameter: 1245mm
Rotor Blades: 550mm
RTF Weight: 3000g (Estimated)
Recommended Battery: 6s 5000 mAh Li-Po
Main Gear Ratio: 9.56 – 12.75 (Gearing Dependent)
Main Gear Size: 153 teeth/Mod 0.7 Herringbone
Battery Slot: 62 x 54 x 300mm (HxWxL)
Length: 1070mm
Height: 360mm
Width: 210mm

Includes:

• Mikado Logo 550 Kit
• Mikado Aluminum Rotor Head
• Motor Counter Bearing & Integrated Mainshaft Support (5mm Motor Shaft)
• Assembly Manual
• 550mm Carbon Fiber Blades
• 92mm Carbon Fiber Tail Rotor Blades
• Yellow/Orange Painted Fiberglass Canopy

Needed to Complete:

• Brushless Motor: 1100-1400kV, 30mm Mounting Holes
• Herringbone Pinion Gear (Mod 0.7 w/ Standard Main Gear)
• 80A-120A Brushless ESC
• 6s (22.2V) Li-Po 4500-5000mAh 45C or higher
• (3) “Fullsize/Standard” Cyclic Servos
• (1) “Fullsize/Standard” Tail Servo
• Flybarless Gyro
• 6+ Channel Radio System
• 6+ Channel Receiver
• Battery Charger
• Misc. Building Tools & Accessories

This product was added to our catalog on November 14, 2017
