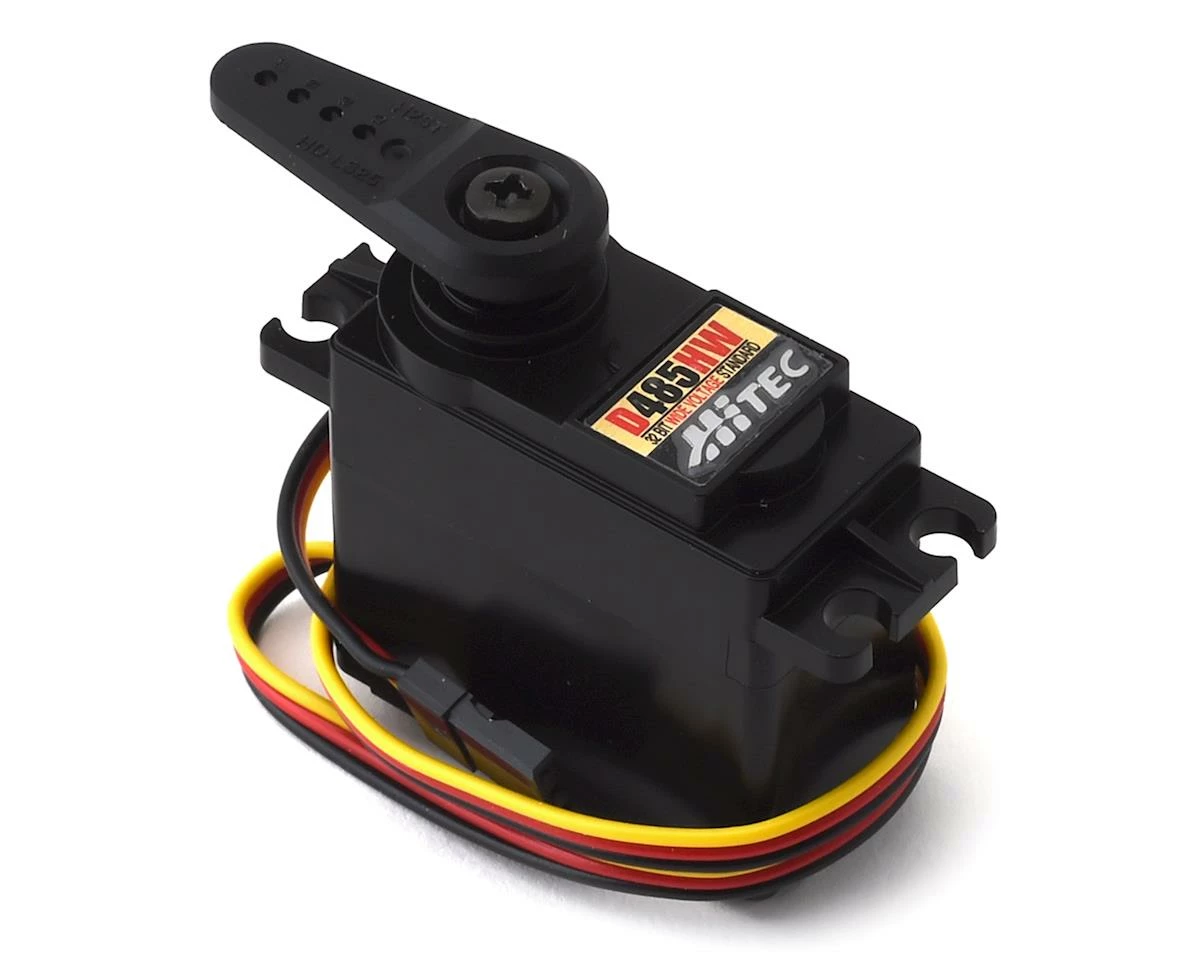

Hitec D485HW Karbonite Standard Servo (High Voltage)

This is the Hitec High Votage D485HW Karbonite Standard Servo. Replacing the standard-size HS-5485HB and HS-5495BH servos, the sport class D485HW brings faster response and accuracy to your various radio control needs with D-series high resolution 32-bit technology and wide voltage operation.

Operating Voltage Range (Volts DC): 4.8V ~ 7.4V

Speed (Second @ 60°): 0.20 ~ 0.15

Maximum Torque Range oz./in.: 72 ~ 104

Maximum Torque Range kg./cm.: 4.8 ~ 7.4

Current Draw at Idle: 30 mA

No Load Operating Current Draw: 320mA

Stall Current Draw: 1,500mA

Dead Band Width: N/A

Dimensions (Inches): 1.57 x 0.78 x 1.49

Dimensions (Metric): 39.8 X 19.8 X 38.0

Weight (Ounces): 1.59

Weight (Gram): 45.0

Circuit Type: 32 bit Programable Digital

Motor Type: 3 Pole Cored Carbon Brush

Gear Material: MK 1st Gear & 3 Karbonite

Bearing Type: Top Ball Bearing

Case Material: Plastic

Dust/Water Resistance: N/A

Connector Gauge (AWG)/Strand Count: N/A
