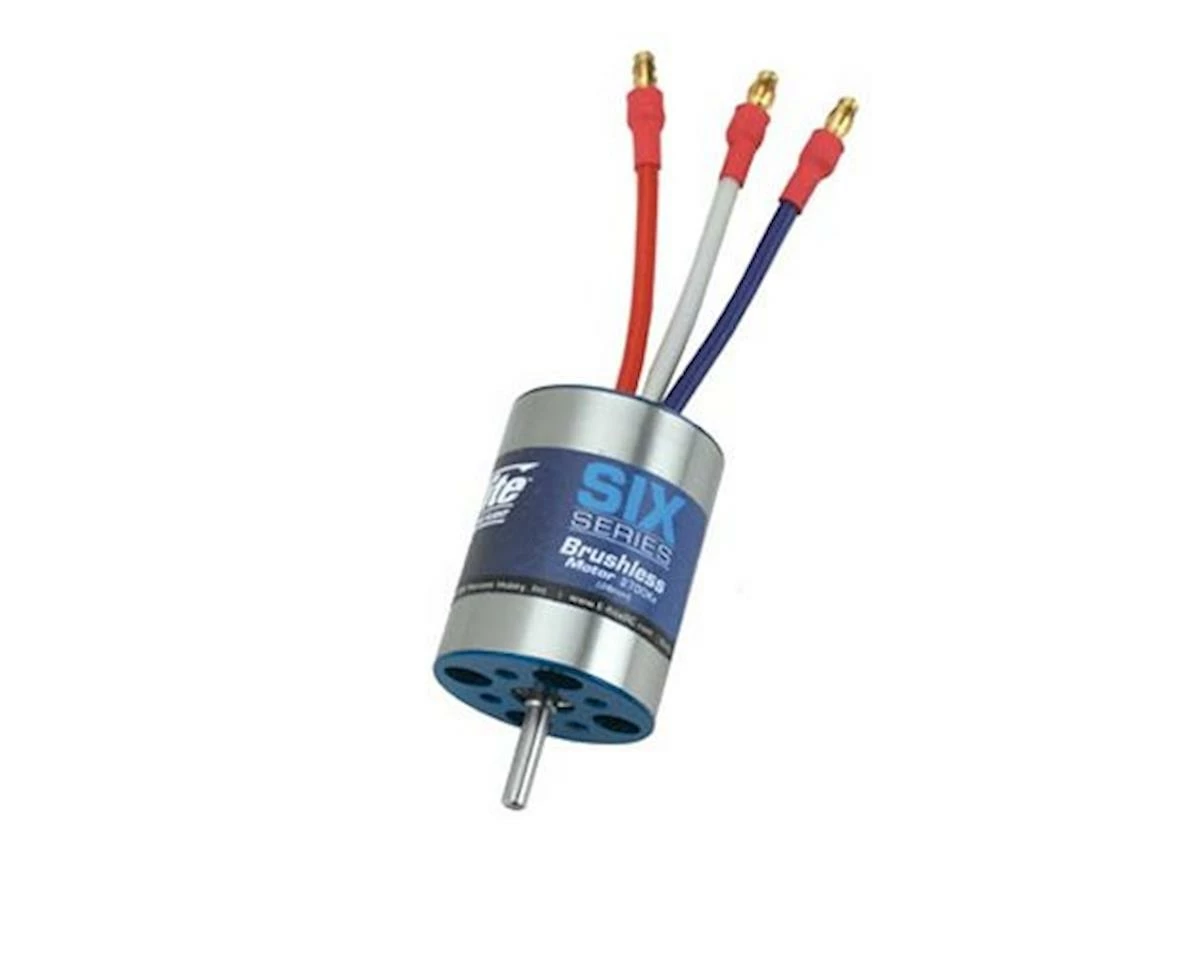

E-flite Six-Series Brushless 2000Kv Motor (28mm)

Six-Series Brushless 6-pole motors are high-torque motors suitable for either direct drive or geared applications. They feature the same diameter and mounting hole pattern as brushed 400 and 480 motors so they make excellent upgrades for these classes of models. Six-Series motors are ideal for direct-drive applications such as hotliners and other LMR products weighing 18 to 28 ounces. They are also ideal for 3D and aerobatic models weighing 28 to 35 ounces, and for scale park flyers weighing 25 to 40 ounces, when using a gearbox. They’re an especially good match for the ParkZone F-27B Stryker (PKZ1200), flying wings and hotliners when using direct drive, and for aerobatic and 3D models like the E-Flite Brio 10 (EFL2275) when using a gearbox.

Key Features:

• Perfect match for 3D and aerobatic models weighing 28–35 oz (790–990 g) using a gearbox
• Ideal for scale park flyers weighing 25–40 oz (710–1140 g) using a gearbox
• Ideal direct-drive motor in models weighing 18–28 oz (510–800 g)
• Ideal for models requiring up to 325 watts of power
• Perfect upgrade for brushed 400 and 480 motors with same diameter and mounting hole pattern
• High-torque, 6-pole slotted rotor design
• Includes connectors, prop adapter, and mounting hardware
• High-quality construction with ball bearings and hardened steel 3.2mm shaft

Specifications:

• Type: Brushless inrunner
• Size: 400 / 480 upgrade
• Bearings or Bushings: Two 4 x 10 x 4mm Bearings
• Recommended Prop Range: 5×4 to 6×5.5 direct drive or 10×6 to 12×6 with 2:1 to 3:1 gearbox
• Voltage: 7.2–12
• RPM/Volt (Kv): 2000
• Resistance (Ri): .06 ohms
• Idle Current (Io): 1.75A @ 10V
• Continuous Current: 26A
• Maximum Burst Current: 32A (15 sec)
• Cells: 6–10 Ni-MH/Ni-Cd or 2–3S Li-Po
• Speed Control: 35–40A brushless
• Weight: 80 g (2.9 oz)
• Overall Diameter: 28mm (1.10 in)
• Shaft Diameter: 3.17mm (1/8 in)
• Overall Length: 36mm (1.40 in)

Needed To Complete:

35A–40A brushless ESC

6- to 10-cell Ni-MH/Ni-Cd or 2–3S Li-Po

5×4 to 6×5.5 direct drive or 10×6 to 12×6 props with 2:1 to 3:1 gearbox
