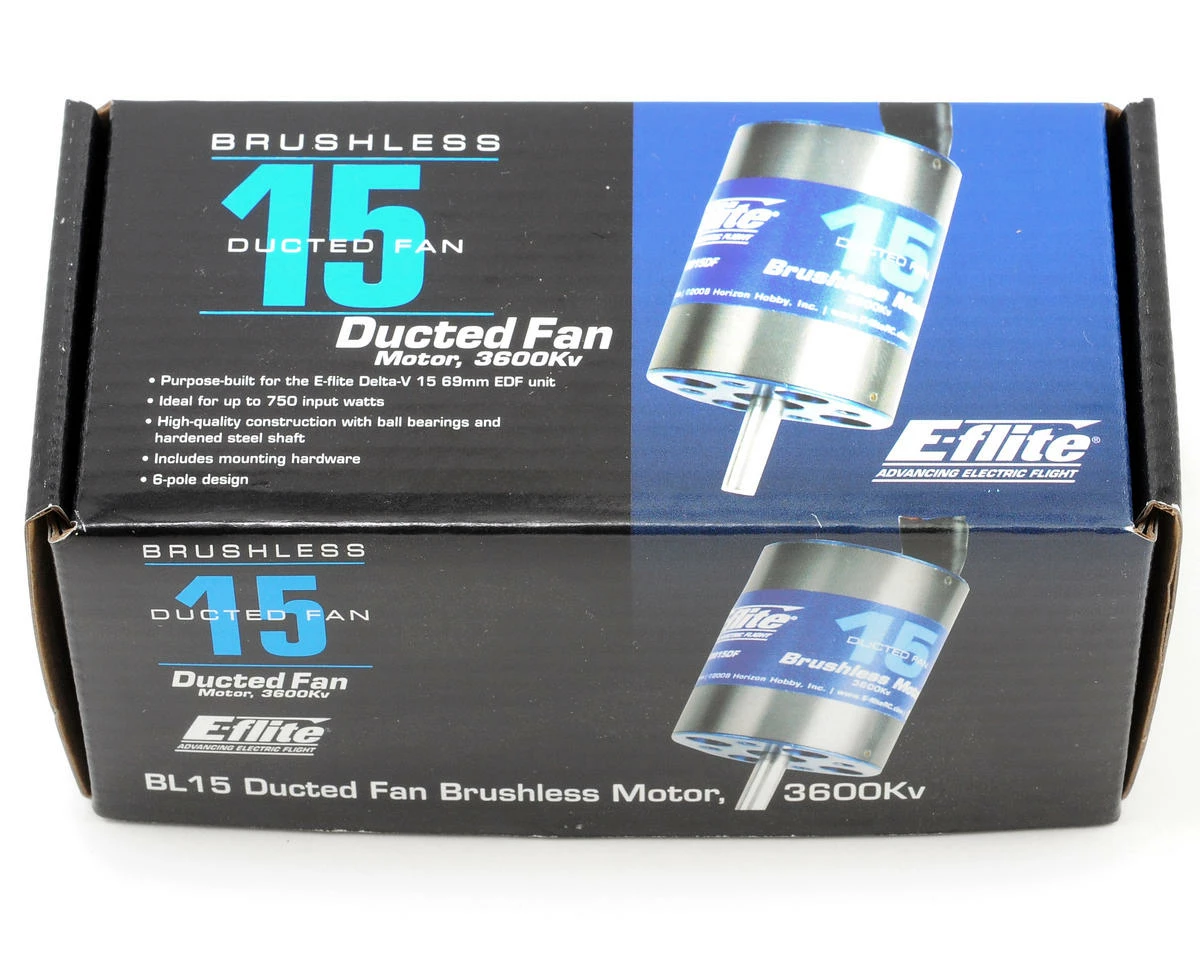

E-flite BL15 Brushless Ducted Fan Motor (3600kV)

This is the E-flite BL15 Brushless Ducted Fan Motor. E-flite’s BL15 DF Brushless Motor is an ideal choice for products such as E-flite’s BAe Hawk 15 DF and other similar sized ducted fan airplanes when using the purpose-built Delta-V 15 69mm EDF (EFLDF15). The motor will provide great performance in 68–70mm diameter fan units requiring a 28mm inrunner motor.

Features:

• Purpose-built for the Delta-V 15 69mm EDF (EFLDF15)
• Ideal for 68–70mm EDF units requiring a 28mm diameter inrunner motor
• Ideal for up to 750 input watts
• High-quality construction with ball bearings and hardened steel shaft
• 6-pole design

Specifications:

• Type: 6-pole Inrunner Brushless
• Size: 15-size for Ducted Fans
• Bearings or Bushings: Bearings
• Voltage: 11.1–16.8V
• RPM/Volt (Kv): 3600
• Resistance (Ri): .02 ohms
• Idle Current (Io): 2.80A @ 10V
• Continuous Current: 46A
• Maximum Burst Current: 55A (15 sec)
• Cells: 3S–4S LiPo power 10–14 Ni-MH/Ni-Cd battery
• Speed Control: 60A brushless
• Weight: 106 g (3.7 oz)
• Overall Diameter: 28mm (1.10 in)
• Shaft Diameter: 4mm (0.16 in)
• Overall Length: 40mm (1.56 in)
• Recommended Ducted Fan Unit: Delta-V 15 69mm EDF (EFLDF15)
• Static Thrust: 1.7 lb on 3S (11.1V)—using recommended Delta-V 15; 2.8 lb on 4S (14.8V)—using recommended Delta-V 15
• RPM: 31,000 on 3S (11.1V)—using recommended Delta-V 15; 40,000 on 4S (14.8V)—using recommended Delta-V 15
• Brushless ESC: 50A—60A

Needed To Complete:

• E-flite 60A Pro SB Brushless ESC
• E-flite Delta-V 15 69mm EDF
• 3S 11.1V 3300mAh LiPo battery or 4S 14.8V 2600mAh LiPo battery

This product was added to our catalog on January 15, 2009
