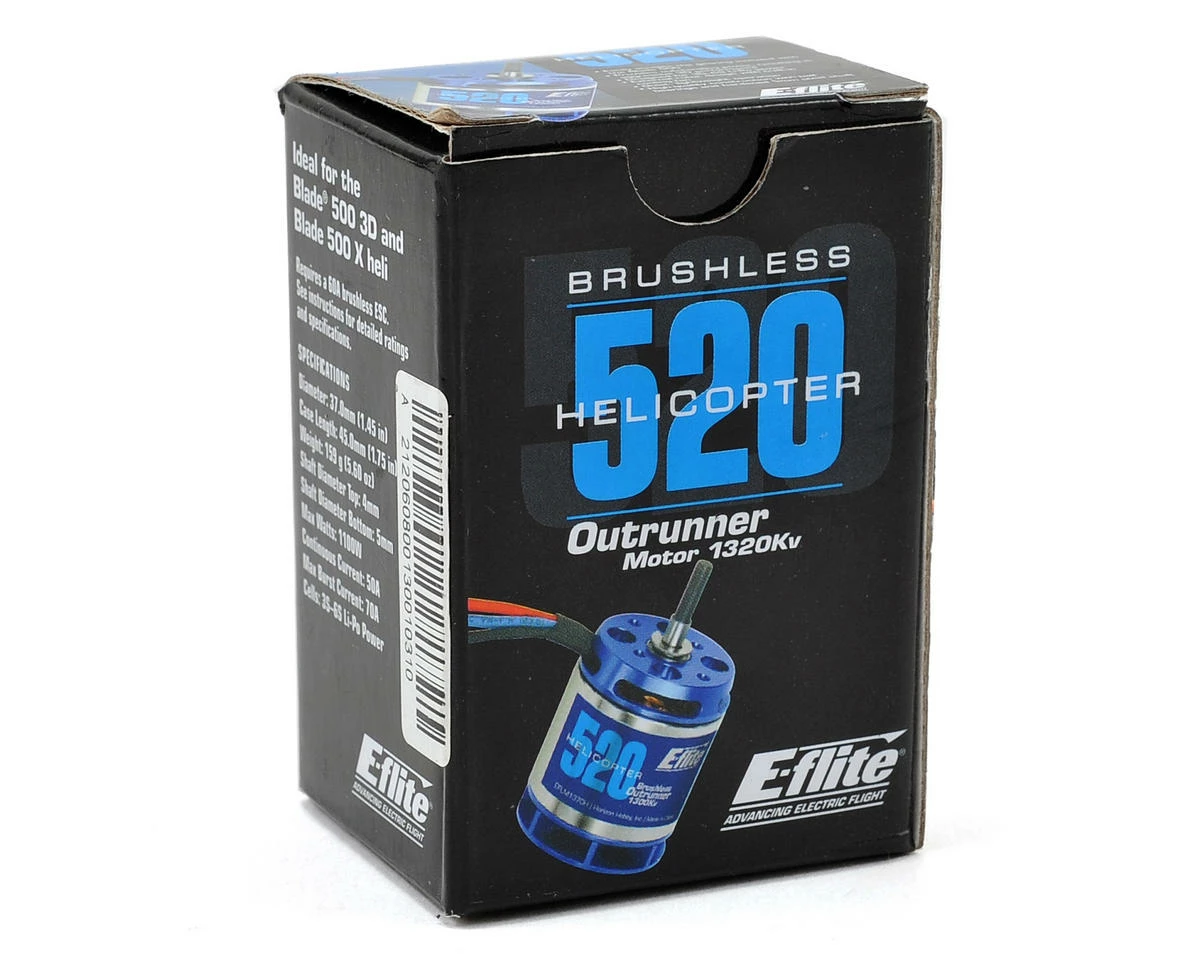

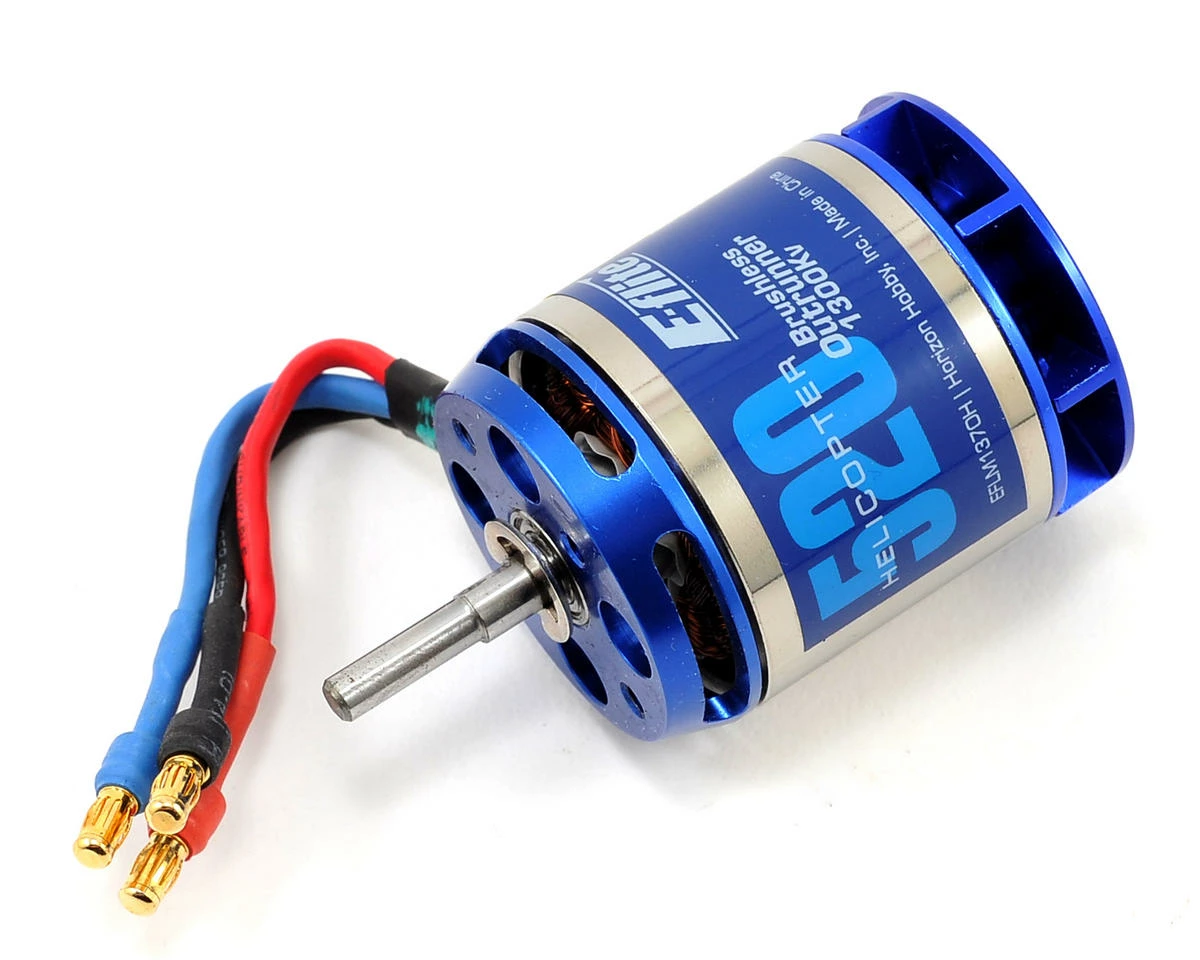

Blade 520H Helicopter Motor (1320kV)

This is a replacement Blade 520H, 1320kV Helicopter Motor.

Specifications:
Type: Brushless Outrunner
Size: Heli 500
Wire Gauge: 16 AWG
Voltage: 22.2V
RPM/Volt (Kv): 1320Kv
Resistance (Ri): 0.032Ω
Idle Current (Io): 3.8A
Continuous Current: 50A
Continuous Amps: 50A
Cells: 6S LiPo
Speed Control: 70-Amp Brushless
Weight: 5.61 oz (159 g)
Overall Diameter: 1.46 in (37mm)
Shaft Diameter: 4.98mm/4mm
Shaft Length: 0.83 in (21mm)
Overall Length: 1.77 in (45mm)

This product was added to our catalog on June 18, 2013
