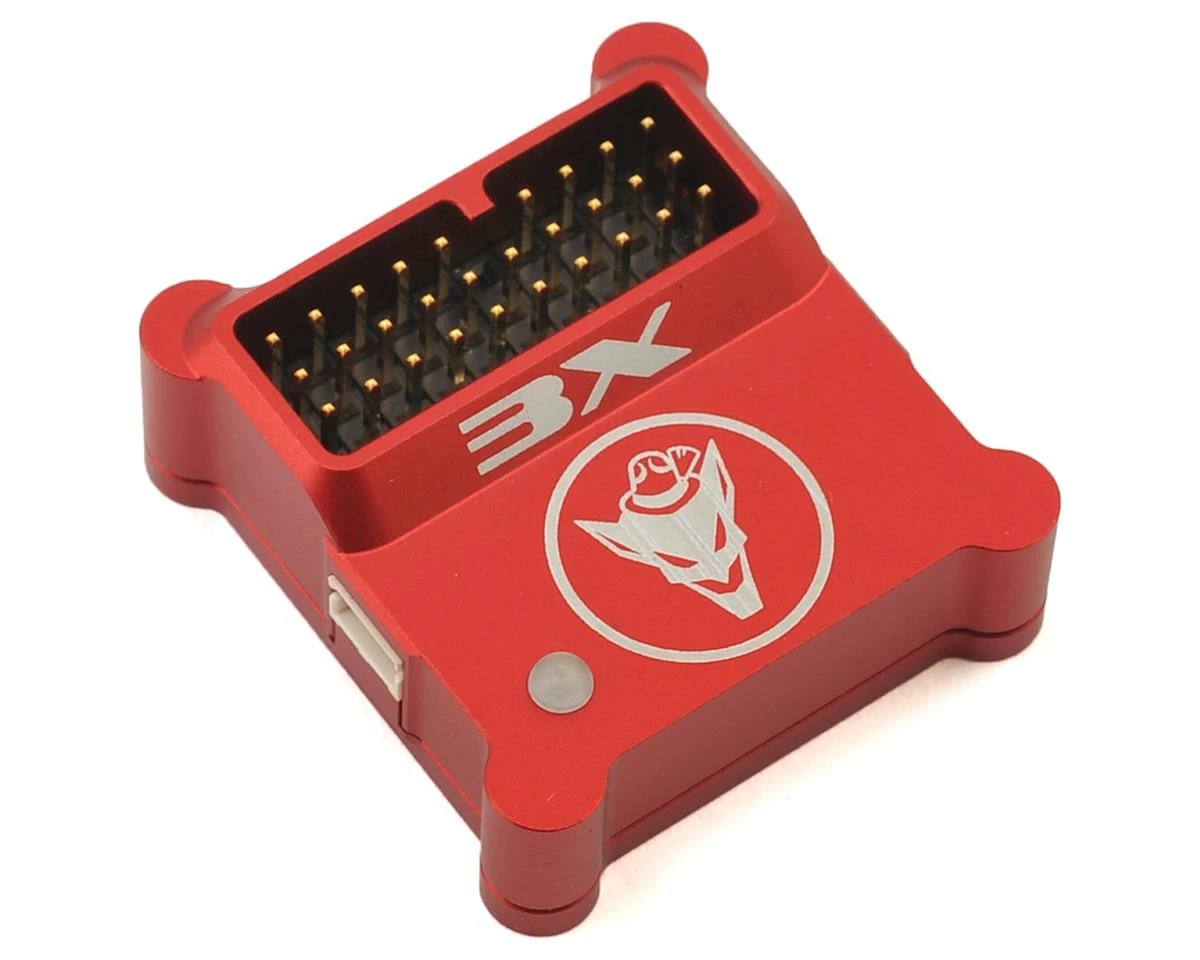

Bavarian Demon 3X 3-Axis Flybarless Gyro System

The Bavarian Demon 3X Helicopter Flybarless Gyro System is an elegantly crafted, yet demonically programmed Flybarless Gyro which offers a plethora of features to even the most demonic level of pilots across the world! 3X is a stripped down version of the bigger brother, 3SX, which essentially has removed the rescue features the 3SX utilizes.

3X can be installed in all helicopter models, such as electric, nitro, gasoline, and turbine powered. 3X additionally supports all servo types, which include: analog, digital, brushless, standard pulse-width (1520uS), & narrow band (760uS). Additionally, all swashplate types are supported within the 3SX software, which ensures compatibility with any model found on the market.

Features:

• High Quality MEMS Gyros
• Aluminum CNC Case
• USB Connection On Board

Specifications:
Dimensions: 36x34x14mm
Supply Voltage: 4-10V (2s LiPo Compatible; Minimum 5.5V when using Spektrum or JR Satellites)
Max Roll & Pitch Rotational Speed: 500 degrees/sec
Max Tail Rotational Speed: 650 degrees/sec
Tail Servo Output: Digital: 220Hz; Analog: 55Hz; 760-1520uS
Head Servo Output: Digital: 110Hz; Analog: 55Hz
Maximum Servo Currents: 10A continuous, 12A peak
Weight: 18g
Cable Length: 90mm

Technical Note: The 3SX will not work with ProTek 270SBL, Xpert R1T, & XPert R2T Tail Servos. The “Axon” will be able to utilize these servos.

This product was added to our catalog on June 7, 2017
