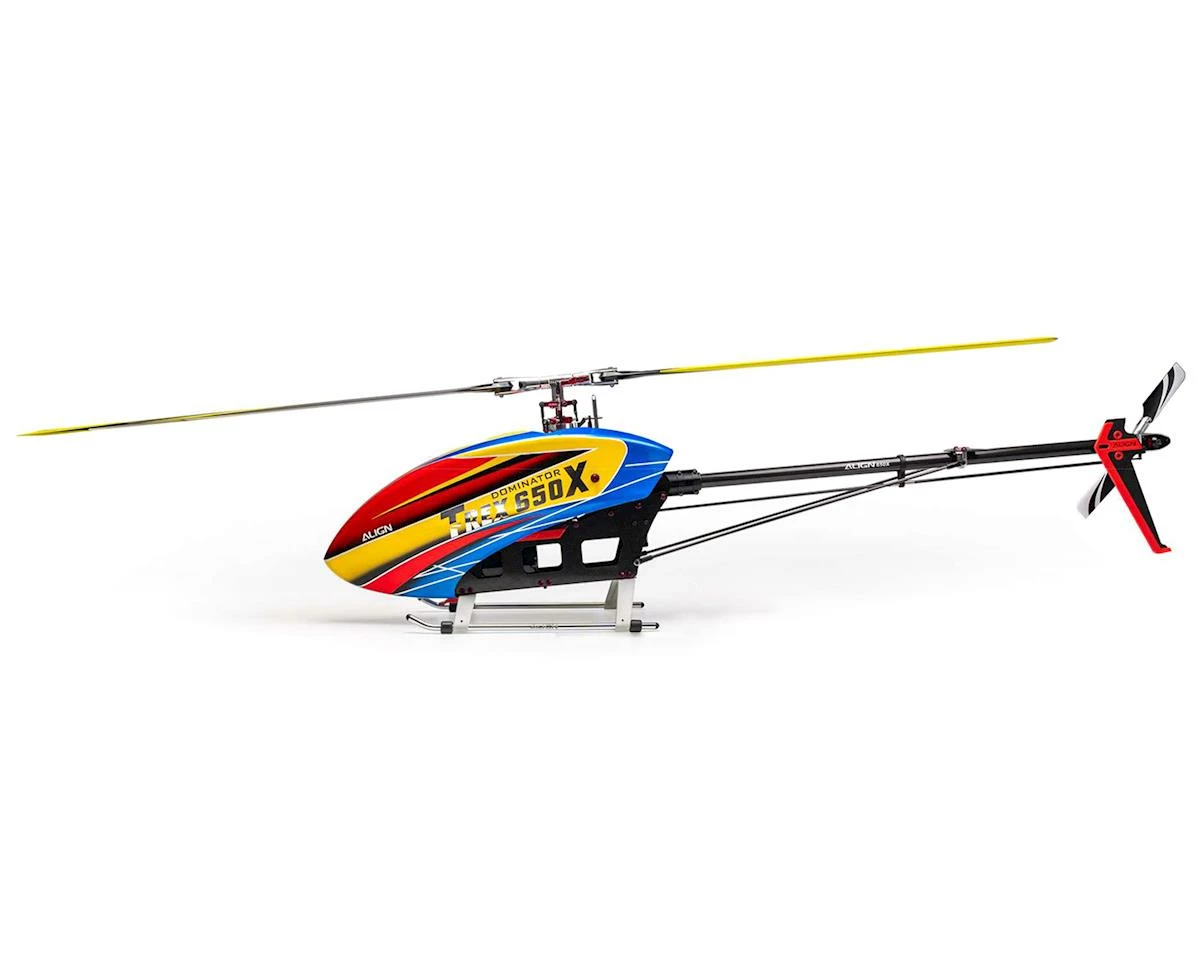

ALIGN T-REX 650X shows unique frame design, featuring a narrow upper frame, and wide lower frame for ample battery room. This design allows for an incredibly strong frame structure, ease of repairs, and a variety of battery options. Typical battery selections are 12s (2x 6s 22.2V) 3300-3500mAh LiPo Batteries. The 650X incorporates many new other concepts such as an updated quick release battery tray system, vivid and bright colors for both the canopy and tail fin, and magnetic canopy mounts. Flight performance is the combination of high stability of the 700-grade helis and high agility of the 600-grade heli. With the included 800MX Brushless Motor, the 650MX will out perform some 700 class models.
Features at a Glance:
-
650X rotor head with low CG design
-
Advanced aluminum swashplate
-
Accepts 600-650mm rotor blades
-
800MX 440KV Motor
-
DS820M & DS825M HV Brushless ServosÂ
- RCE-BL130A Brushless ESC
Specification:
Length:Â 1620mmÂ
Height:Â 356mmÂ
Width:Â 191mmÂ
Main Blade Length:Â 650mmÂ
Main Rotor Diameter:Â 1455mmÂ
Tail Rotor Diameter:Â 280mmÂ
Motor Drive Gear:Â 16TÂ
Main Drive Gear:Â 112TÂ
Autorotation Tail Drive Gear:Â 131TÂ
Tail Drive Gear:Â 34TÂ
Drive Gear Ratio:Â 1: 7.1: 3.85Â
Weight (RTF – Estimated, Depending on Set Up):Â 3320g
Includes:
- (1) T-Rex 650X Dominator Kit
- (1) 650mm Carbon Fiber Blade set
- (1) 105mm 3K Carbon Fiber Tail Blade set
- (1) 800MX Brushless Motor (440KV)
- (3) BL820M High Voltage Brushless Servo
- (1) BL825M High Voltage Brushless Servo
- (1) BL130A Brushless ESC
- (1) Microbeast PLUS Flybarless system
Needed to Complete:
- Transmitter (7-channel or more, helicopter system)
- Receiver (7-channel or more)
- LiPo Batteries:
- 12s (2x 22.2V) 3300-3500mAh
- Digital Pitch Gauge
- Misc Building Tools & Supplies
