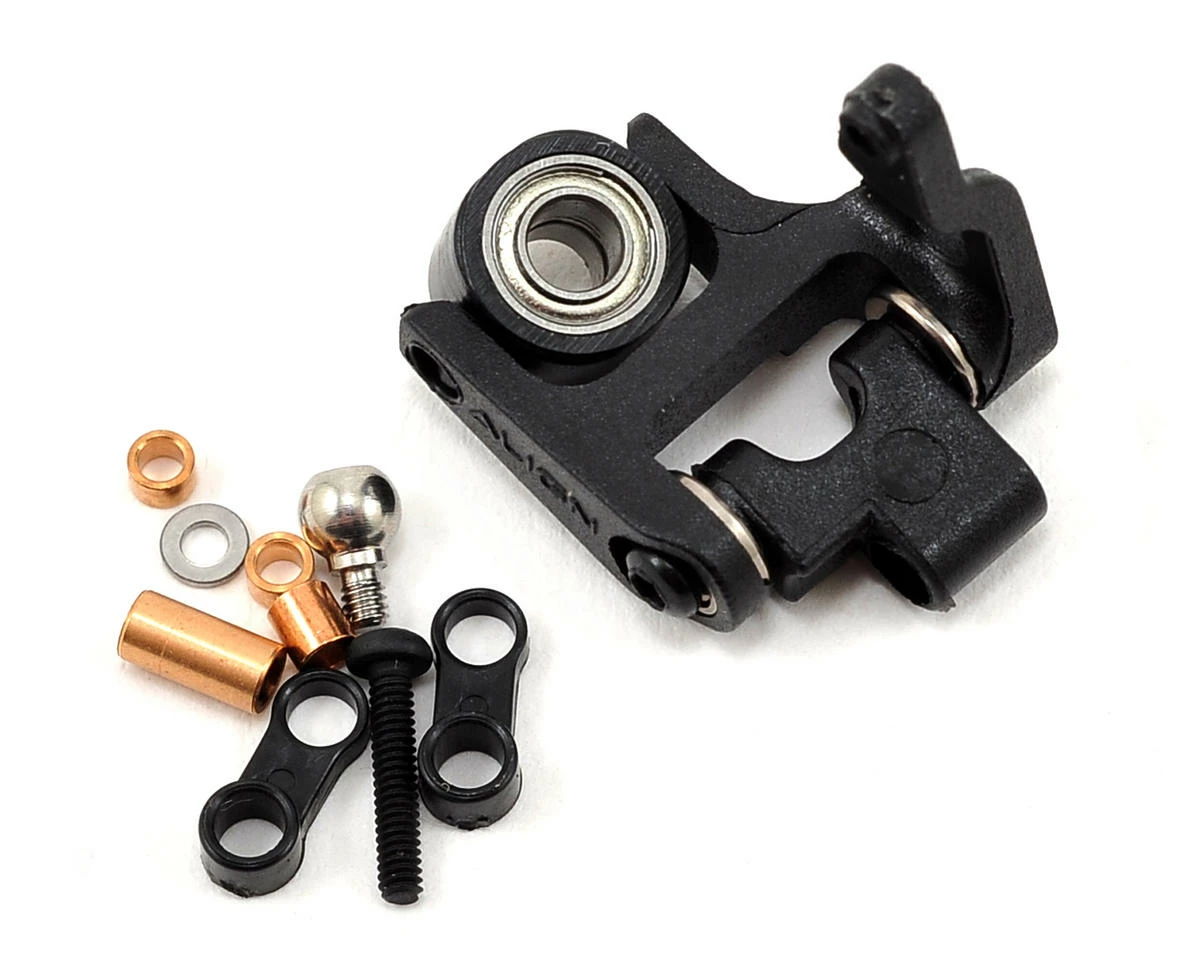

Align 250 Plus Tail Pitch Assembly

This is the Align 250 Plus Tail Pitch Assembly. This assembly utilizes a dual point attachment design for zero play and a more precise control feel.

NOTE:

• Use for AGNH25129 Metal Tail Torque Tube Unit.
• Must use with AGNH25021A Tail Pitch Assembly.
• Must use with AGNH25066A Tail Pitch Control Link.

Includes:

• (1) Linkage ball A(0#-80×2) (Φ3.5×5.3mm)
• (1) I-shaped Arm
• (1) Mount Link
• (2) Bearing F681XZZ (Φ1.5xΦ4xΦ5x2mm)
• (1) Collar (Φ1.5xΦ2.5x5mm)
• (1) Socket Button Head Screw (#0-80x8mm)
• (1) Washer (Φ1.5xΦ3×0.5mm)
• (2) Tail pitch control link
• (2) Collar A (Φ1.5xΦ2.3×2.4mm)
• (2) Collar B (Φ1.5xΦ2.3×1.4mm)
• (2) Socket button head self tapping screw (T1.5x4mm)
• (1) Bearing holder (8.5×7.3×5.6mm)
• (1) Washer (Φ3xΦ4.8×0.6mm)
• (2) Bearing MR63ZZ (Φ3xΦ6×2.5mm)

This product was added to our catalog on August 2, 2013
