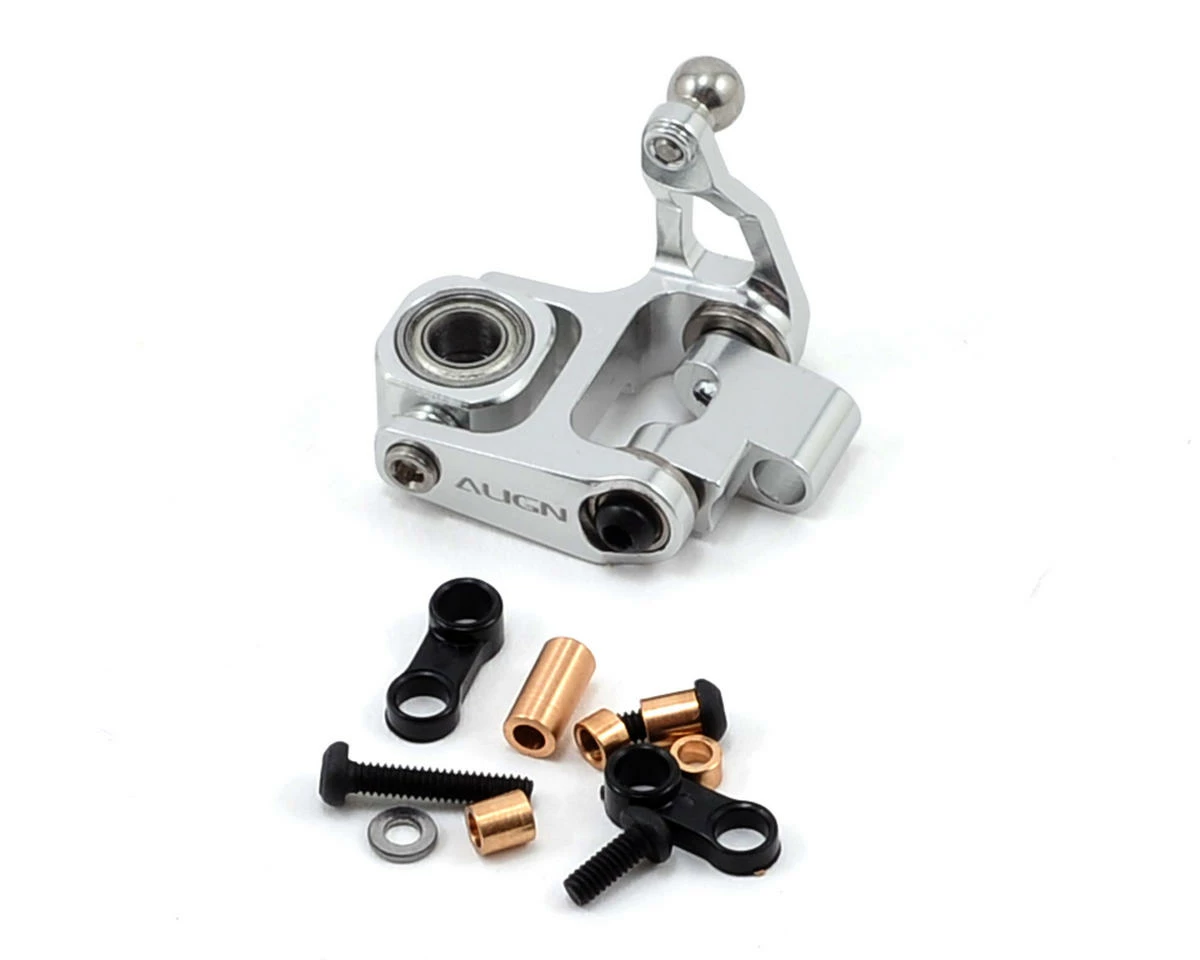

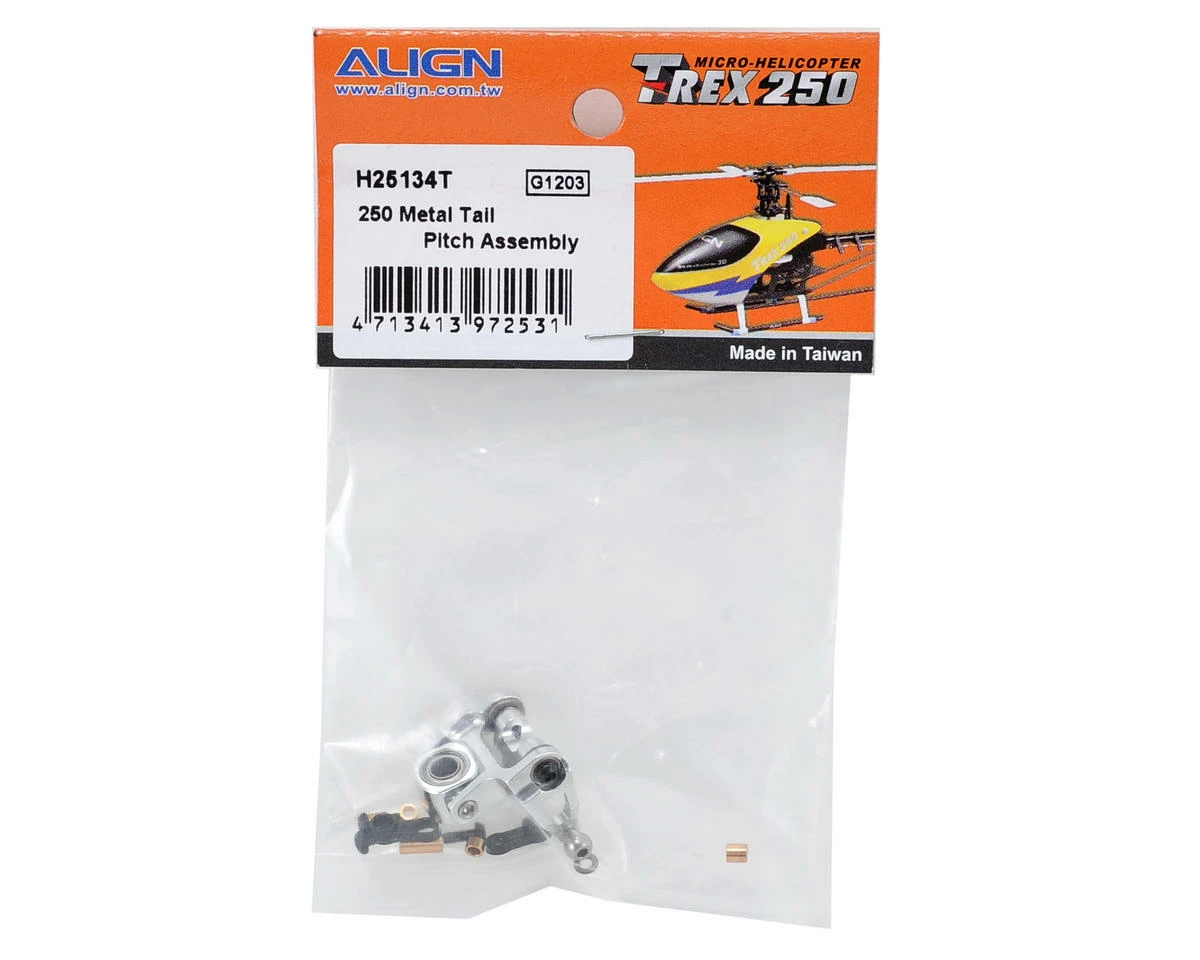

Align 250 Metal Tail Pitch Assembly

This is a replacement Align 250 Metal Tail Pitch Assembly, and is intended for use with the Align T-REX 250 Pro helicopter kit. This assembly is also an option part for the Align T-REX 250 helicopter kit equipped with the Align Metal Tail Torque Tube Unit (AGNH25129). This tail pitch assembly uses CNC 6061-T6 Aluminum and ball bearings offering improved rigidity to the 250 tail, providing a more precise and smoother rudder feel.

Features:

• Utilizes dual point attachment design for zero play and higher precision control feel
• Constructed with CNC aluminum alloy with precision ball bearings at moving points
• Improved structure rigidity and smoothness
• 6061-T6 Aluminum Alloy material and CNC processed

Includes:

• (1) Linkage ball A(0#x2) 3.5×5.3mm
• (1) I-shaped Arm
• (1) Mount Link
• (2) Bearing F681XZZ 1.5x4x5x2mm
• (1) Collar 1.5×2.5x5mm
• (1) Socket button head screw 0#x8mm
• (1) Washer 1.5x3x0.5mm
• (2) Tail pitch control link 4.9×1.4×2.4mm
• (2) Collar A 1.5×2.3×2.4mm
• (2) Collar B 1.5×2.3×1.4mm
• (2) Socket button head screw 0#x4mm
• (1) Bearing holder 8.5×7.3×5.6mm
• (2) M2 Set screw 2.5×2.4mm
• (1) Washer 3×4.8×0.6mm
• (2) Bearing MR63ZZ 3x6x2.5mm

This product was added to our catalog on July 12, 2012
