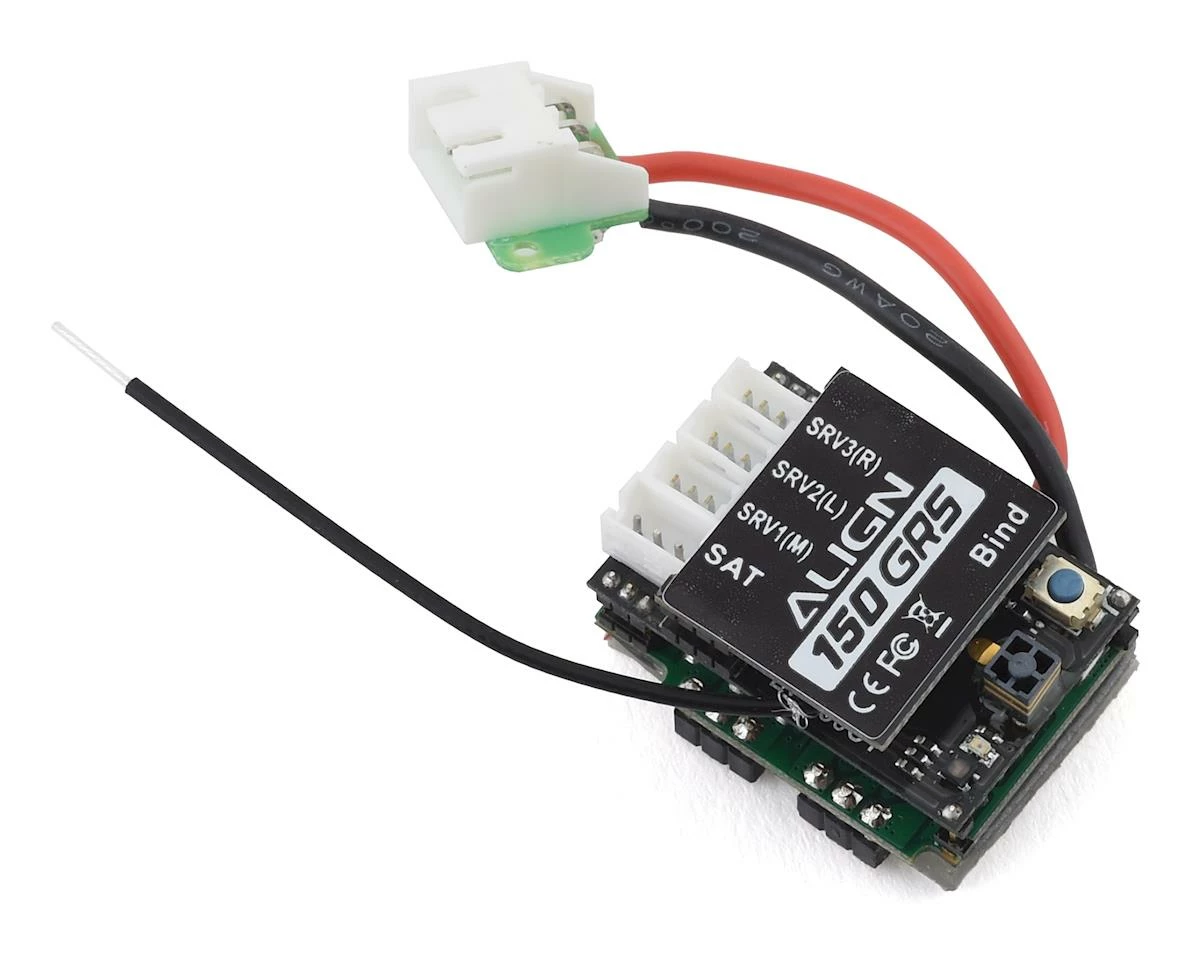

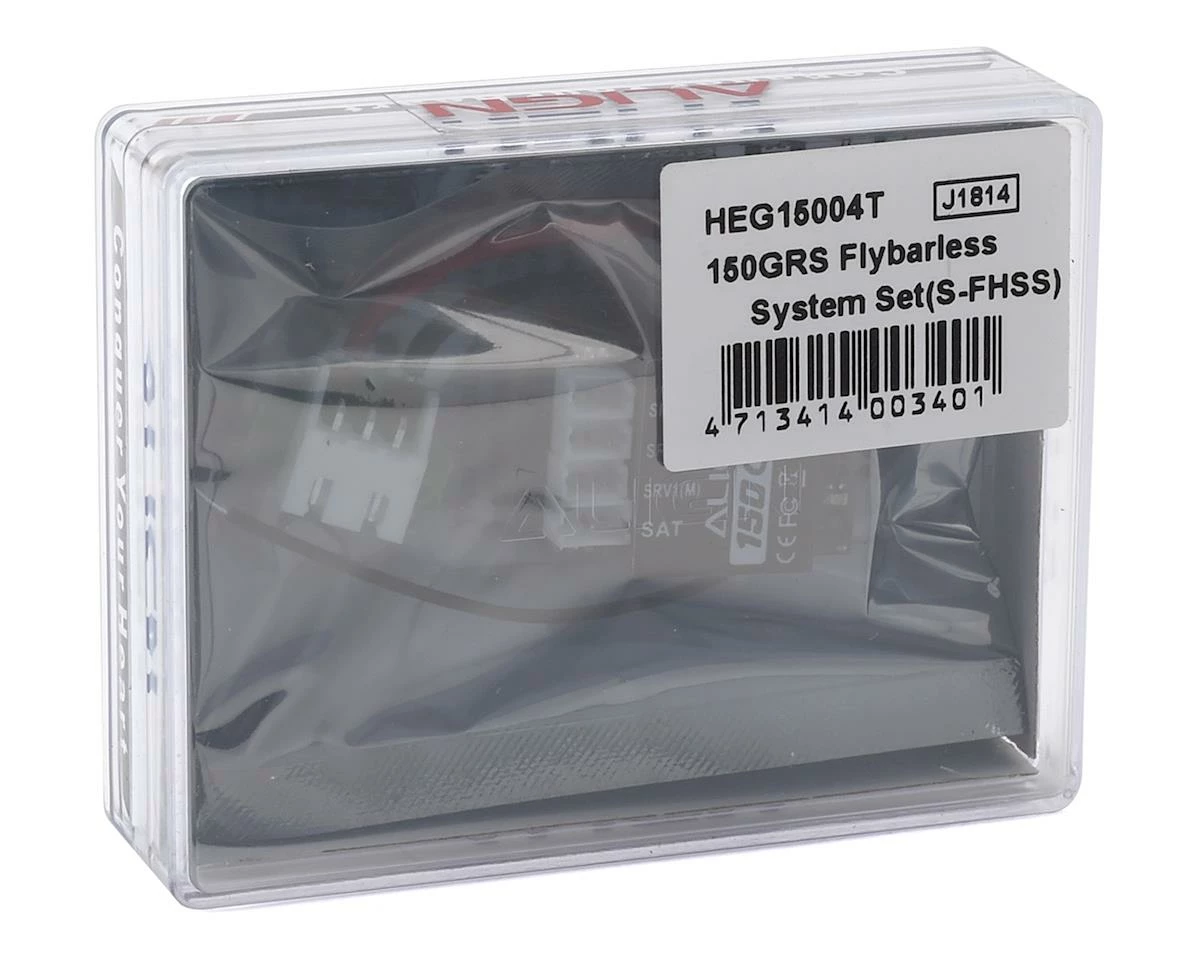

Align 150GRS Flybarless System Set

The Align 150GRS Flybarless System Set, intended for use with the T-REX 150/150X, integrates a 6-axis gyro, ARM Cortex M4 32 bits processor, ALIGN A.BUS receiver, Bluetooth, and dual ESC. Although it’s small, the redesigned system is powerful allowing the T-REX 150X to perform maneuvers just like a big scale helicopter. Moreover, Attitude Auto-level Mode is specially designed for beginners providing an easy and fun flying experience. With the built-in Bluetooth module setup or adjusts of the flight parameters and system upgrades can be done at anytime using the FREE APP.

• 6-axis Gyro： 3-axis gyroscope + 3-axis accelerometer using a superior ARM Cortex-M4 32-bits processor. 3D feeling is superior while auto-level ability is also agile and stable.
• Attitude Auto-level Mode： While there is no stick input for helicopter, the heli will auto-level and still keep at horizontal position, which is suitable for beginners.
• Rescue Mode： While wrong stick input is given or heli is in trouble, or you are in panic, activate the rescue mode by flipping a switch on the radio to keep helis at a level position.
• 3D Flying： Brand new DFCS(Direct Flight Control System)Controller allows to control real time flight. Strong Cortex-M4 Processor allows T-REX 150 to fly just like big scale helicopters.
• Built-in Receiver： ALIGN A.BUS Receiver
• Plug-in Receiver(Required)： Compatible with Spektrum DSM2/DSMX, JR DSM2/DMSS satellite.

Operating voltage range： 2S Li-Po

Operating current consumption： <100mA @ 5V

Rotational detection rate： 2000°/sec

Rudder yaw detection rate： 2000°/sec

Sensor resolution：16BIT

Operating temperature：-20℃ ~ 65℃

Operating humidity：0% ~ 95%

Swashplate Support: MODE H-1

Receiver Support: ALIGN / Futaba S-FHSS、DSM2 / DSMX / DMSS
